Description

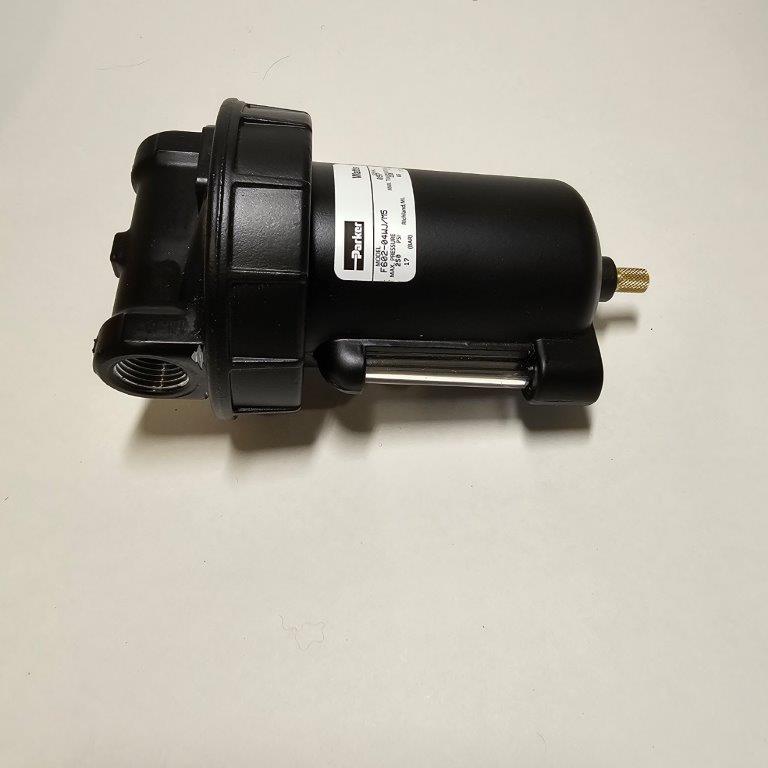

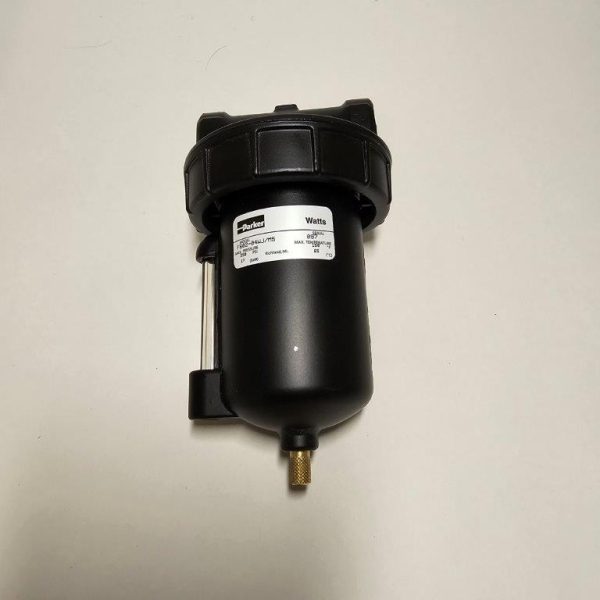

Parker Watts F602 Hi-Flow General Purpose Air Filter
F602-04WJ/M5
mx pressure 250psi
max temp 150F/ 65C
twist drain
metal bowl/sight gauge
1/2″ NPT
40 micron filter
Features
• Excellent Water Removal Efficiency
• For Heavy Duty Applications with Minimum
Pressure Drop Requirement
• Unique Deflector Plate that Creates Swirling of
the Air Stream Ensuring Maximum Water and
Dirt Separation
• Large Filter Element Surface Guarantees Low
Pressure Drop and Increased Element Life
• 40 Micron Filter Element Standard,
5 Micron Available
• Metal Bowl with Sight Gauge Standard
• Twist Drain as Standard, Optional Auto Drain
• Large Bowl Capacity
• Optional High Capacity Bowl(s) Available
• High Flow: 1/2″ – 90 SCFM§
w=metal bowl with sight gauge
j=40 micron
