Description
See our site heaterpro.ca for more information on our heaters and accessories.

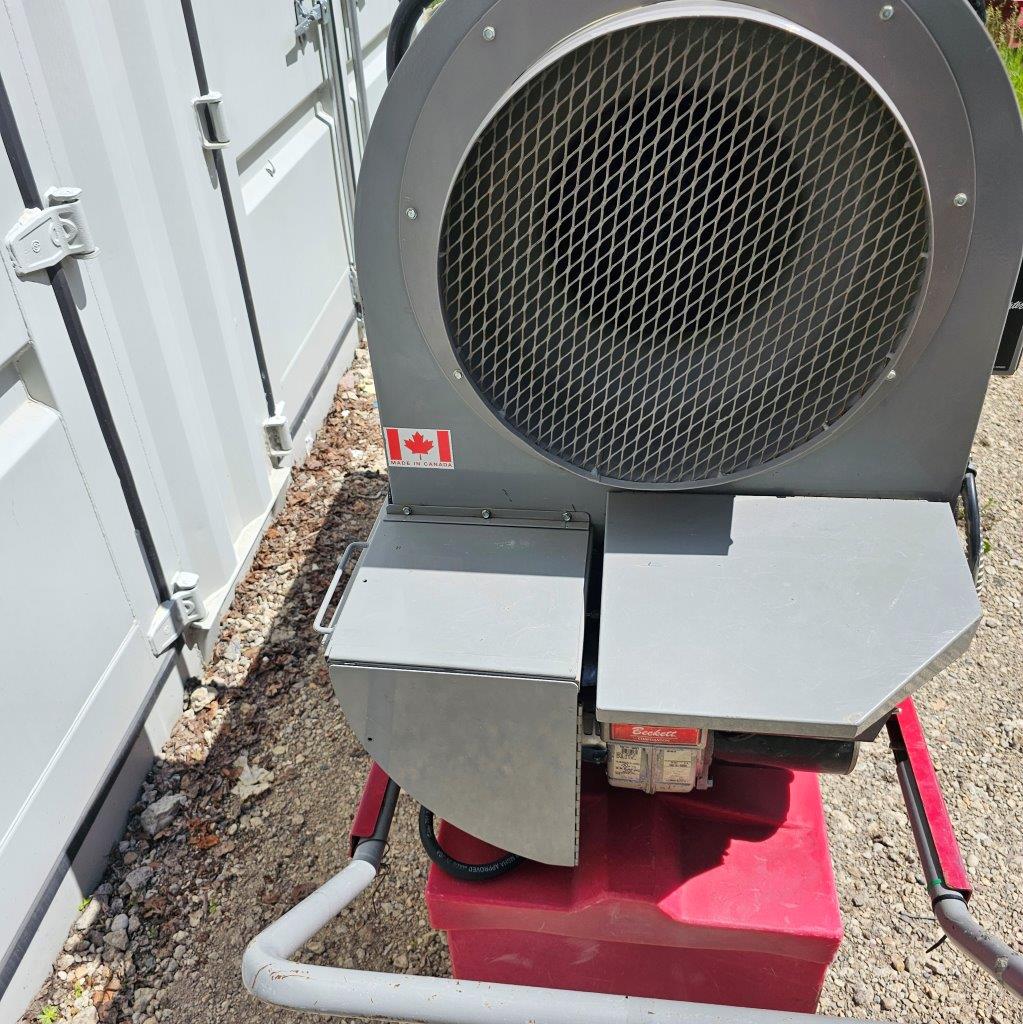

• Proven & reliable commercial grade burner
• Over 81% efficiency
• Fully Insulated Jacket to minimize heat loss, increase efficiency and provide cool to the touch for safety
• Proven “Multi-Pass” Stainless Steel Heat Exchanger provides unsurpassed heat transfer
• Fully independent fan & combustion air provides consistent and dependable operation in cold weather and ensures pre-heating to eliminate cold air delivery at start-up
• High static pressure/high volume fan provides large volumes of air movement with or without ducting attached

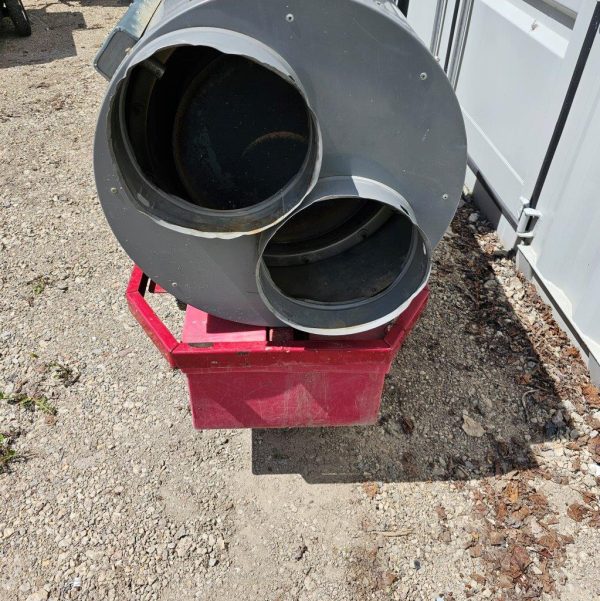

• Dual 12″ Outlet that can accommodate up to 100. of supply duct
• 16″ Recirculating Intake that can accommodate up to 50 ft. of return duct to significantly reduce fuel consumption and heating times (length of intake duct attached requires equal reduction from 100 ft. of supply duct ..e.g: 25 intake = 75 supply)
• Quiet operation of <62dB for noise sensitive areas
High efficiency stainless steel heat exchanger
• CSA Approved
• Specifications:
Maximum Heating Capacity: 340,000 BTU/h
Fuel Requirement: Oil/Diesel,
Standard Recirculation: Yes / 16″
Heated Air Volume: 2,800 CFM
Overall Dimensions (LxWxH): 70″ x 35″ x 57″
Weight: 510lbs.
Discharge Temperature: Up To 250⁰F (121⁰C)
Required Power: 120V / 15amp
Decibel Rang: <62dB Running
Power Consumpon:9.2amps
Standard Fuel Tank Capacity: 42 US Gallons
Approx. Run Time : 15 hrs
